Supported Symbology

Bridge uses the Python bridgestyle library to export QGIS symbology into other formats such as SLD (used when uploading to GeoServer), MapServer files, or Mapbox GL.

Below you can find a list of supported elements that should be correctly converted from QGIS to SLD, along with additional information about the limitations of the conversion between these two formats.

Common settings

This section describes general elements that are common to most types of layers and symbologies.

Drawing order (symbol levels)

You can use symbol levels in QGIS to define the order in which to render the symbol layers, which should be correctly converted to z-levels in SLD.

Size units

Size values can be used in millimeters, pixels, points, or real world meters. In this last case, expressions cannot be used, only fixed values.

However, please note that it's safer to use pixels instead of millimeters (which are the default unit in QGIS), since pixel is the assumed unit for formats like SLD, so no conversion is needed.

Expressions

Expressions are supported wherever QGIS allows to use data-defined values. They must be created using QGIS expression language (Python custom functions are not supported). Not all available functions in QGIS can be used, since there's no equivalent for all of them in GeoServer. The following QGIS functions can be used:

radians, degrees, floor, ceil, area, buffer, centroid,
if, bounds, distance, convex_hull, end_point, start_point,
x, y, concat, substr, lower, upper, replace, exterior_ring,
intersects, overlaps, touches, within, relates, crosses,
disjoint, geom_from_wkt, perimeter, union, acos, asin, atan,
atan2, sin, cos, tan, ln, title, translate, min, max,
to_int, to_real, to_string

Some function parameters accept expressions, but this is not always supported by Bridge when converting to SLD. This applies to the following parameter types:

• Colors
• Parameters selected from drop down lists
• Offset values
• Size measures in units different than pixels or mm (i.e. if you are using map units relative to the current map scale)

Blending modes

Blending modes are supported at the layer level.

Vector Layers

The supported elements for styling vector layers are described below.

Supported renderers

The following renderers are supported for vector layers:

Single symbol

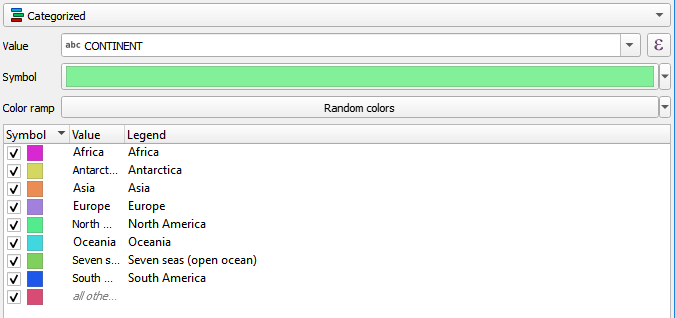

Categorized

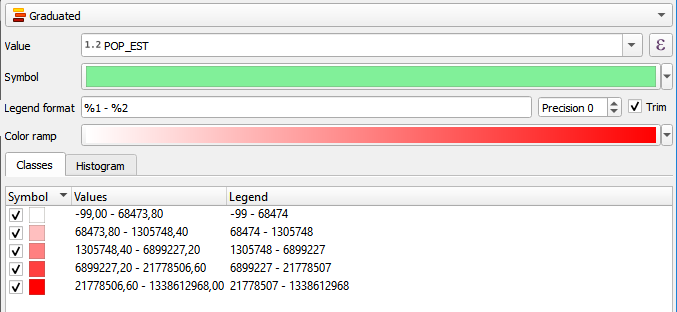

Graduated

Heatmap

The following limitations apply:

• Radius must be expressed in pixels
• Expressions are not supported for the weight parameter

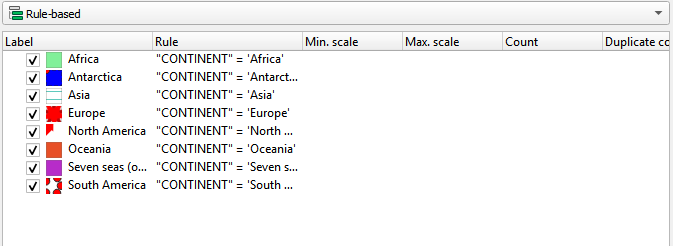

Rule-based

Nested rules are supported. The ELSE rule is also supported, but it might behave incorrectly in the SLD version if the layer has labeling. QGIS considers labeling to be a separate part of the symbology, while SLD considers it as just another symbolizer.

To find out more about the supported expressions that can be used in rule filters, see the Expressions section.

Supported point symbology

The following symbol layer types are supported for rendering points:

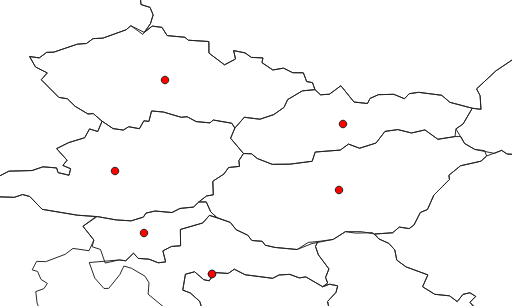

Simple marker

Below is a list of the parameters that are supported:

• Size
• Fill Color
• Stroke Color
• Stroke style
• Stroke width
• Join style
• Rotation
• Offset

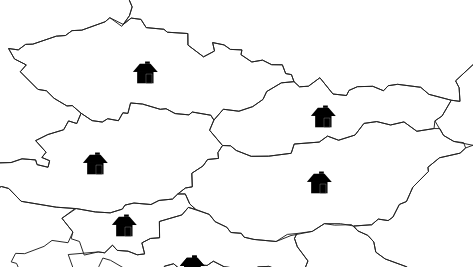

SVG marker

Below is a list of the parameters that are supported:

• Size
• Fill Color
• Stroke Color
• Stroke width
• Rotation
• Offset
• SVG image

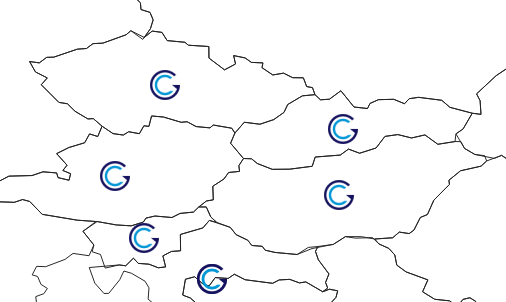

Raster image marker

Below is a list of the parameters that are supported:

• Size
• Rotation
• File

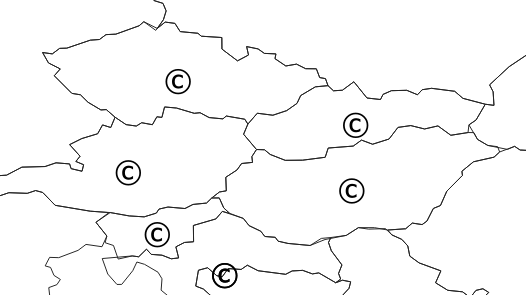

Font marker

Below is a list of the parameters that are supported:

• Size
• Fill Color
• Font

Geometry generator

Supported line symbology

The following symbol layer types are supported for rendering lines:

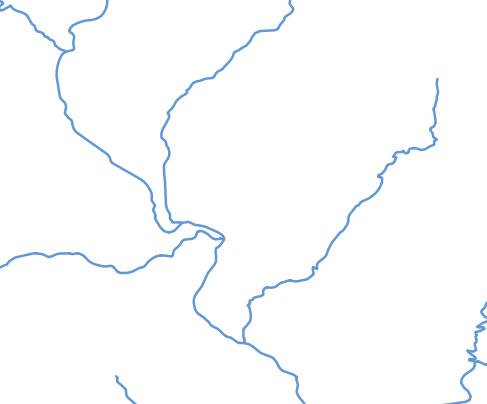

Simple line

Below is a list of the parameters that are supported:

• Color
• Stroke width
• Stroke style
• Join style
• Cap style
• Offset

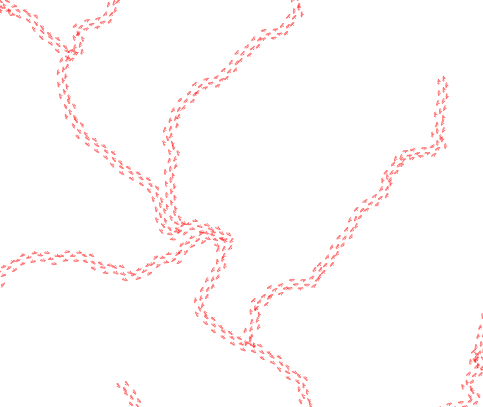

Marker line

Below is a list of the parameters that are supported:

• Marker placement: only with interval mode is supported
• Offset along line

As marker, you can use simple markers, SVG markers and raster image markers, with the restrictions mentioned in the corresponding section about supported symbology for point symbols.

Geometry generator

Supported polygon symbology

The following symbol layer types are supported for rendering polygons:

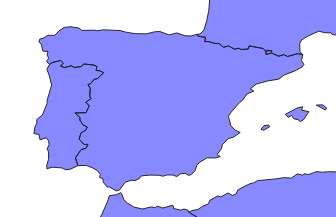

Simple fill

Below is a list of the parameters that are supported:

• Size
• Fill Color
• Fill style: only solid, no brush, horizontal, vertical, cross
• Stroke Color
• Stroke style
• Stroke width
• Join style
• Rotation

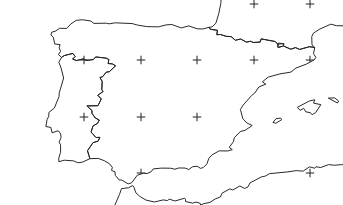

Point pattern fill

Below is a list of the parameters that are supported:

• Horizontal distance
• Vertical distance

As marker, you can use simple markers, SVG markers and raster image markers, with the restrictions mentioned in the corresponding section about supported symbology for point symbols.

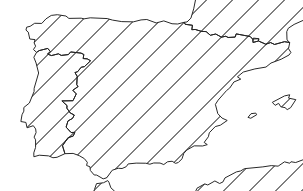

Line pattern fill

Below is a list of the parameters that are supported:

• Rotation: Angle will be rounded to a multiple of 45 degrees
• Spacing

Outline: Simple line

See the section on supported symbology for simple lines

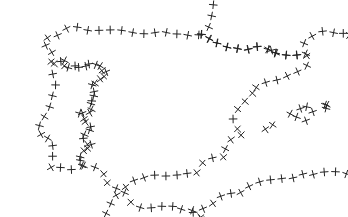

Outline: Marker line

See the section on supported symbology for marker lines

Geometry generator

Labeling

The following labeling modes are supported for vector layer labels.

• No labels
• Single labels
• Rule-based labeling

Text options

The following options from the Text group of parameters are supported:

• Size
• Font family
• Rotation

Buffer options

The following options from the Buffer group of parameters are supported:

• Size
• Color
• Opacity

Background options

The following options from the Background group of parameters are supported:

• Size X
• Size Y
• Size type
• Shape type
• Stroke color
• Fill color

Placement options

The only supported Placement option is Offset from centroid, using the following parameters

• Quadrant
• Offset
• Rotation

Raster Layers

The supported elements for styling raster layers are detailed in this section.

Supported renderers

• Single band gray
• Single band color
• Single band pseudo color
• Multi-band color
• Paletted
